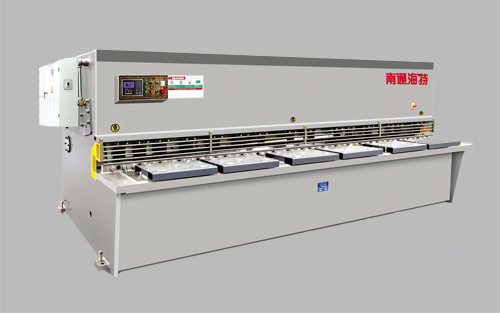

QC12K系列數控液壓擺式剪板機

產品特點：
　　主機采用QC12Y系列液壓擺式剪板機。
　　數控系統選用國內外名牌專用剪板機數控系統。
　　后擋料電機選用進口交流伺服電機。
　　后擋料滾珠絲杠+直線導軌。
　　根據用戶需要選配數控系統。
Product Features:
The host adopts QC12Y series hydraulic swing shearing machine.
The CNC system adopts domestic and foreign famous brand specialized shearing machine CNC system.
The rear material blocking motor adopts imported AC servo motor.
Rear material ball screw+linear guide rail.
Select CNC system according to user needs.


機床背部采用安全護欄 The back of the machine tool is equipped with a safety barrier	剪切刀口采用柵欄保護 The cutting edge is protected by a fence	深候口設計，可剪切超寬鋼板 Deep waiting mouth design, capable of cutting ultra wide steel plates

E18數控系統（華德爾）
1、既滿足機床數控功能，又能滿足精度控制燈求；
2、采用直接控制電機的模式，操作簡單，安裝方便、維修簡易三個目的。
3、可輸入1-9個工步，系統可以單次工作，也可循環控制精度為0.1mm.
E18 CNC System (Walder)
1. It can meet both the CNC function of machine tools and the precision control requirements of lamps;
2. Adopting a direct control mode for the motor, it has three objectives: easy operation, convenient installation, and easy maintenance.
3. It can input 1-9 steps, and the system can work single time or cycle control with an accuracy of 0.1mm

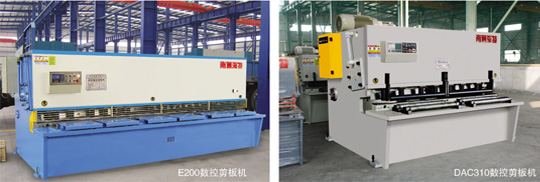

DAC310
1、高清晰LCD顯示275×45像素；
2、后擋料的控制；刀口間隙的控制；剪切行程的控制；
3、后檔料實際位置與編程值同時顯示；
4、剪切計數：100個程序步；面板式安裝；
5、伺服控制/變頻調整控制/雙速交流電機控制。
DAC310
1. High definition LCD display with 275 × 45 pixels;
2. Control of rear blocking materials; Control of blade clearance; Control of cutting stroke;
3. The actual position of the rear material is displayed simultaneously with the programmed value;
4. Cut count: 100 program steps; Panel installation;
5. Servo control/Variable frequency adjustment control/Dual speed AC motor control.

技術參數：Technical Specifications:

型號 model	剪板尺寸 (厚×寬) Cutting board size (Thickness x Width)	剪切角 Shear angle	行程次數 number of trips	后擋料架調節范圍 Adjustment range of rear material rack	主電機 main motor	外形尺寸 (長×寬×高) Overall dimensions (Length x Width x Height)
型號 model	mm	(°)	min^-1	mm	KW	mm
4×3200	4×3200	1°30′	18	20～600	5.5	3840×1675×1600
6×2500	6×2500	1°30′	18	20～600	7.5	3130×1530×1600
6×3200	6×3200	1°30′	14	20～600	7.5	3840×1675×1620
6×4000	6×4000	,1°30′	14	20～600	7.5	4630×1850×1700
6×5000	6×5000	1°30′	10	20～800	18.5	5660×2050×1950
6×6000	6×6000	1°30′	10	20～800	18.5	6700×2300×2300
8×2500	8×2500	1°30′	14	20～600	11	3130×1530×1600
8×3200	8×3200	1°30′	10	20～600	11	3840×1675×1620
8×4000	8×4000	1°30′	8	20～600	11	3840×1850×1700
8×5000	8×5000	1°30′	7	20～800	18.5	4630×2050×1950
8×6000	8×6000	1°30′	6	20～800	18.5	6750×2330×2230
10×2500	10×2500	1°30′	14	20～800	15	3130×1580×1800
10×3200	10×3200	1°30′	12	20～800	15	3840×1725×1850
10×4000	10×4000	1°30′	12	20～800	15	4630×1900×1850
12×2500	12×2500	1°30′	16	20～800	18.5	3235×2045×1850
12×3200	12×3200	1°30′	14	20～800	18.5	3945×2227×1935
12×5000	12×4000	1°30′	14	20～800	18.5	4695×2227×2115
12×5000	12×5000	1°30′	7	20～1000	45	6100×3370×2200
12×6000	12×6000	1°30′	6	20～1000	45	7100×3370×3050
12×8000	12×8000	1°30′	5	20～1000	45	9100×3575×3050
16×2500	16×2500	2°	16	20～650	18.5	3235×2050×3150
16×3200	16×3200	2°	12	20～800	22	3950×2230×1985
16×4000	16×4000	2°	10	20～800	22	4700×2230×2250
20×2500	20×2500	2°30′	5	20～1000	37	3290×2900×2250
20×3200	20×3200	2°30′	4	20～1000	37	4000×3100×2450
20×4000	20×4000	2°30′	3	20～1000	37	4750×3300×2600
20×6000	20×6000	2°30′	3	20～1000	75	7050×3480×2800
25×2500	25×2500	2°30′	6	20～1000	45	3500×3150×3050
25×3200	25×3200	2°30′	5	20～1000	45	4200×3150×3500
25×4000	25×4000	2°30′	5	20～1000	45	4850×3300×3500
32×2500	32×2500	3°	5	20～1000	55	3500×3150×3500
32×3200	32×3200	3°	4	20～1000	55	4200×3150×3500
40×2500	40×2500	4°	5	20～1000	75	3600×3300×3200
40×3200	40×3200	4°	3	20～1000	90	4300×3300×3400
50×3000	50×3000	3°	5		90×3	4040×3600×4800
50×6000	50×6000	3°	5		90×5	7040×2800×5100
60×3500	60×3500	3°30′	5		90×4
