性能特點:
→ 機架、刀架振動消除應力，整機焊接，經久耐用。
→ 先進的集成式液壓系統，可靠性好。
→ 采用三點支承滾動導軌，消除支承間隙，保證剪切質量。
→ 刀片間隙手動或電動調整，快速、準確。
→ 上下刀片采用四面刃，增加使用時間，延長刀片的使用壽命。
→ 剪切角可電動調整，最大限度的減小板材變形量。
→ 具有分段定長剪切功能。
→ 自動充液功能。
→ 電動后擋料、數字顯示，準確可靠。
→ 剪切端面、剪切速度、剪切厚度優于同規格液壓擺式剪板機。
Performance characteristics:
The frame and tool holder vibrate to eliminate stress, and the whole machine is welded for durability.
Advanced integrated hydraulic system with good reliability.
Using three-point support rolling guide rails to eliminate support gaps and ensure shear quality.
Manual or electric adjustment of blade clearance, fast and accurate.
The upper and lower blades adopt four sided blades to increase the usage time and extend the service life of the blades.
The cutting angle can be electrically adjusted to minimize the deformation of the sheet metal to the greatest extent possible.
→ It has the function of segmented fixed length cutting.
→ Automatic liquid filling function.
Electric rear gear shift and digital display, accurate and reliable.
The cutting end face, cutting speed, and cutting thickness are superior to those of hydraulic swing shearing machines of the same specifications.
技術參數:Technical Specifications:
|
規格
Model |
可剪切最大板厚
Max cutting
Thickness(mm) |
可剪切最大板寬
Max cutting
Width(mm) |
行程次數
No.of stokes
(min-1) |
剪切角度
Rake angle |
后擋料距離
Adj.distance of
Back gauge(mm) |
主電機功率
Power of main motor (kw) |
外型尺寸
Overrall dimensions(mm) |
|

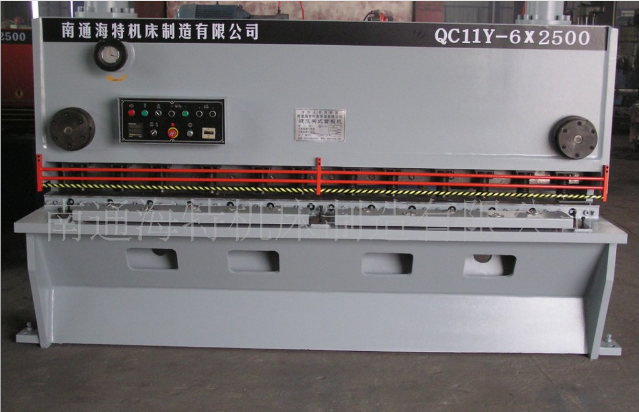

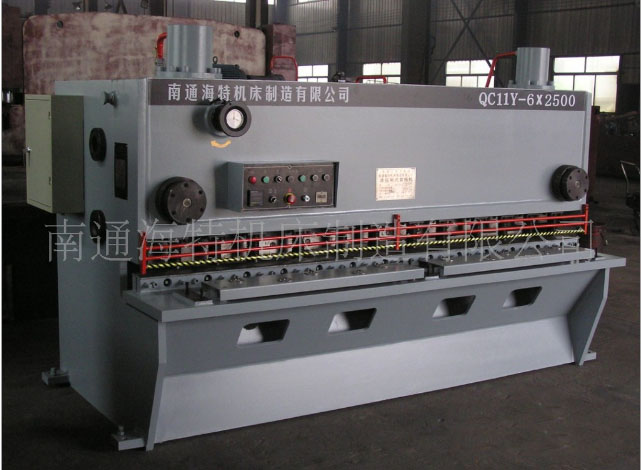

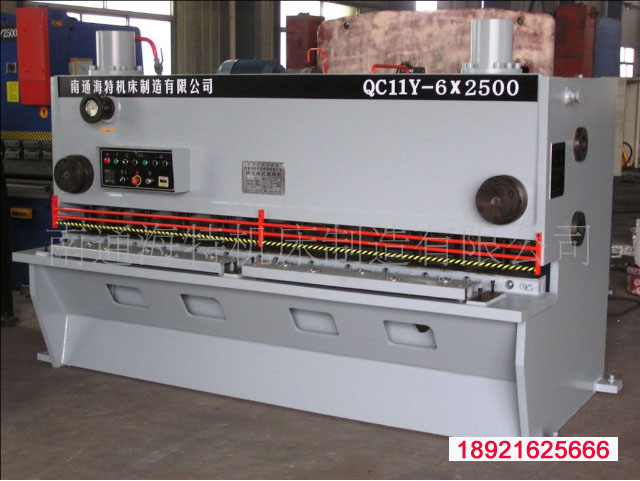

6×2500 |
6 |
2500 |
16～35 |
0.5～1.5° |
20～600 |
7.5 |
3180×1400×1920 |
|
6×3200 |
6 |
3200 |
14～35 |
0.5～1.5° |
20～600 |
7.5 |
3930×1600×1950 |
|
6×4000 |
6 |
4000 |
10～30 |
0.5～1.5° |
20～800 |
7.5 |
4620×2070×2036 |
|
6×6000 |
6 |
6000 |
8～25 |
0.5～1.5° |
20～800 |
11 |
6650×2470×1930 |
|
8×2500 |
8 |
2500 |
14～30 |
0.5～2° |
20～600 |
11 |
3150×1550×2080 |
|
8×3200 |
8 |
3200 |
12～30 |
0.5～2° |
20～600 |
11 |
3900×1590×2120 |
|
8×4000 |
8 |
4000 |
10～25 |
0.5～2° |
20～600 |
11 |
4700×1620×2150 |
|
8×6000 |
8 |
6000 |
8～20 |
0.5～2° |
20～800 |
15 |
6700×1650×2190 |
所有產品價格均為普機價格，如需特殊配置及數控裝置價格另議！
All product prices are for regular machines. If special configurations or CNC devices are required, prices will be negotiated separately!
