【溫馨提示】：產品圖片、價格、屬性僅供參考，

具體詳情請來電或旺旺咨詢，真誠期待與您合作！

性能特點：
1、經全鋼焊接結構，經振動時效處理消除內應力，具有良好的剛性及穩定性；
2、伺服比例閥發出的流量和電子尺的記號反饋結合；控制滑塊（Y1、Y2）同步運行；
3、滑塊下死點重復精度為0.01mm,折彎角度為0.5°；
4、滑塊快慢速轉換點及上限位停靠點通過光柵尺反饋電腦調整。

可選擇配置數控軸：
1、后擋料定位（X軸）；
2、后擋料高度調節（R軸）；
3、擋料塊獨立的橫向調節（Z軸）；
4、工作臺加凸（V軸）；
5、每個擋料塊X向獨立運動（X‘軸）（適用于公稱力為2500KN以下規格）。

【 Friendly Reminder 】: Product pictures, prices, and attributes are for reference only,

For specific details, please call or consult on Wangwang. We sincerely look forward to working with you!

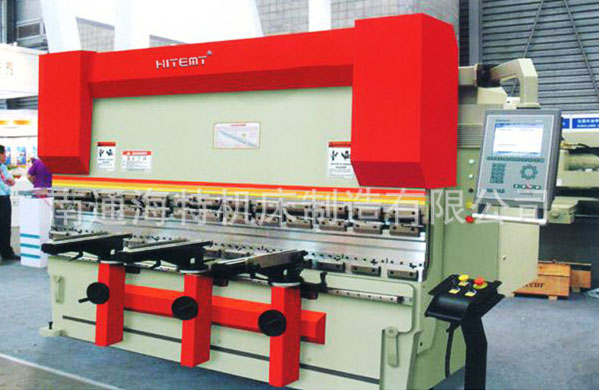

Performance characteristics:
1. Through all steel welding structure and vibration aging treatment to eliminate internal stress, it has good rigidity and stability;
2. The flow rate emitted by the servo proportional valve is combined with the marking feedback of the electronic ruler; Control the synchronous operation of sliders (Y1, Y2);
3. The repeatability accuracy of the bottom dead center of the slider is 0.01mm, and the bending angle is 0.5 °;
4. The fast slow transition point and upper limit stop point of the slider are adjusted by the computer through the feedback of the grating ruler.

Optional configuration of CNC axis:
1. Rear material positioning (X-axis);
2. Rear material height adjustment (R-axis);
3. Independent lateral adjustment of the blocking block (Z-axis);
4. Workbench with convexity (V-axis);
5. Each blocking block moves independently in the X direction (X 'axis) (applicable to specifications with a nominal force of 2500KN or less).
