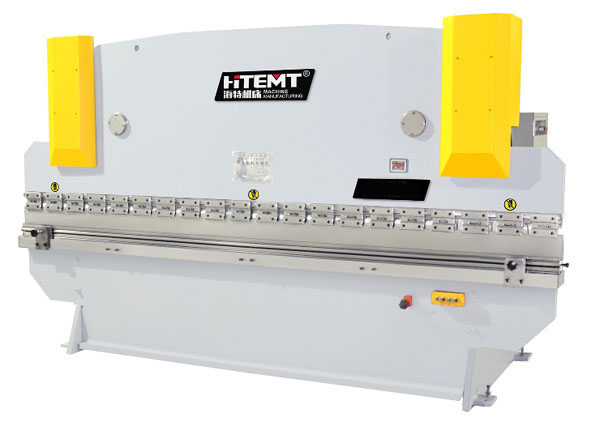

性能特點：
→ 整機鋼板焊接結構，采用振動時效消除應力，機器強度高、剛性好。
→ 液壓雙油缸上傳動、機械擋塊，扭軸同步，運行平穩可靠，精度高。
→ 后擋料距離及滑塊行程采用電動調節及手動微調方式，并配有數字顯示裝置，使用方便快捷。
→ 上模配有擾度補償裝置，250噸和長度4000mm以上機床可采用下擾度補償機構。
Performance characteristics:
The whole machine has a welded steel plate structure, which uses vibration aging to eliminate stress. The machine has high strength and good rigidity.
Hydraulic dual cylinder transmission, mechanical stopper, synchronized torsion shaft, smooth and reliable operation, high precision.
The distance of the rear material and the stroke of the slider are adjusted electrically and manually, and equipped with a digital display device, making it easy and fast to use.
The upper mold is equipped with a disturbance compensation device, and machine tools with a length of over 4000mm and 250 tons can use a lower disturbance compensation mechanism.
技術參數：Technical Specifications:
|
規格
Model |
公稱壓力
Nominal
Pressure |
工作臺長度
Length of
Woking table |
立柱間距離
Distance between
Uprights |
喉口深度
Throat
Dephts |
滑塊行程
Ram
Stroke |
最大開啟高度
Open height |
主電機功率
Motor power |
外型尺寸
Overrall dimensions |
|
Kn |
Mm |
Mm |
Mm |
Mm |
Mm |
Kw |
Mm |
|
30/1600 |
300 |
1600 |
1270 |
170 |
70 |
315 |
3 |
1640×1000×1800 |
|
40/2500 |
400 |
2500 |
2000 |
150 |
100 |
315 |
4 |
2050×1380×2100 |
|
63/2500 |
630 |
2500 |
2000 |
260 |
120 |
315 |
5.5 |
2450×1250×2120 |
|
63/3200 |
630 |
3200 |
2500 |
260 |
100 |
370 |
5.5 |
3160×1260×2145 |
|
80/3200 |
800 |
3200 |
2500 |
260 |
120 |
380 |
7.5 |
3260×1450×2580 |
|
100/2500 |
1000 |
2500 |
2050 |
320 |
150 |
310 |
7.5 |
2560×1450×2580 |
|
100/3200 |
1000 |
3200 |
2500 |
320 |
150 |
310 |
7.5 |
3260×1450×2580 |
|
100/4000 |
1000 |
4000 |
3100 |
320 |
150 |
310 |
7.5 |
4060×1450×2580 |
|
125/2500 |
1250 |
2500 |
2000 |
320 |
120 |
370 |
7.5 |
2560×1400×2460 |
|
125/3200 |
1250 |
3200 |
2600 |
320 |
120 |
370 |
7.5 |
3260×1400×2460 |
|
125/4000 |
1250 |
4000 |
3400 |
320 |
120 |
370 |
7.5 |
4060×1400×2460 |
|
160/2500 |
1600 |
2500 |
2050 |
320 |
120 |
410 |
11 |
2560×1580×2710 |
|
160/3200 |
1600 |
3200 |
2500 |
320 |
120 |
410 |
11 |
3260×1580×2710 |
|
160/4000 |
1600 |
4000 |
3100 |
320 |
120 |
410 |
11 |
4060×1650×2810 |
|
160/6000 |
1600 |
6000 |
4600 |
320 |
200 |
430 |
11 |
6100×1800×3050 |
|
200/2500 |
2000 |
2500 |
2100 |
400 |
200 |
480 |
15 |
2560×1850×3080 |
|
200/3200 |
2000 |
3200 |
2600 |
400 |
200 |
480 |
15 |
3260×1850×3080 |
|
200/4000 |
2000 |
4000 |
3100 |
400 |
200 |
480 |
15 |
4060×1850×3080 |
|
200/6000 |
2000 |
6000 |
5100 |
400 |
200 |
480 |
15 |
6060×1870×3100 |
此產品價格為普機價格，如需特殊配置及數控裝置價格另議！ |
