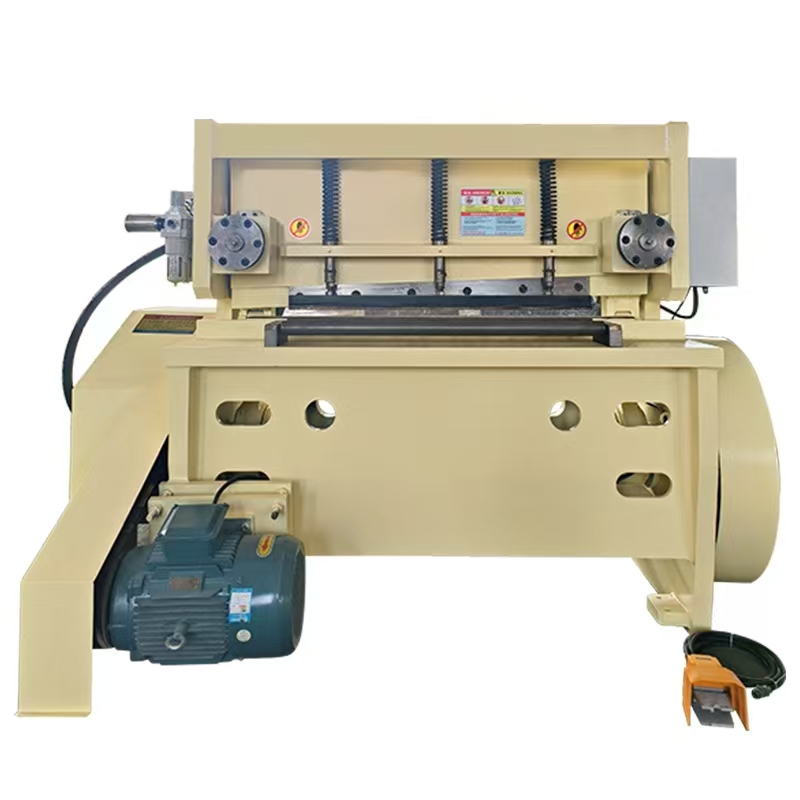

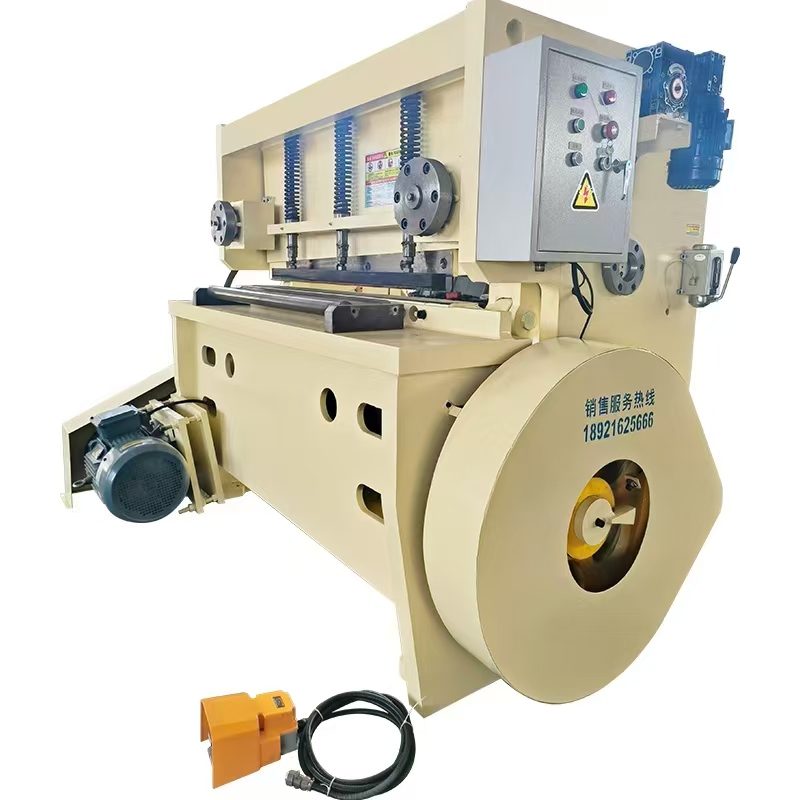

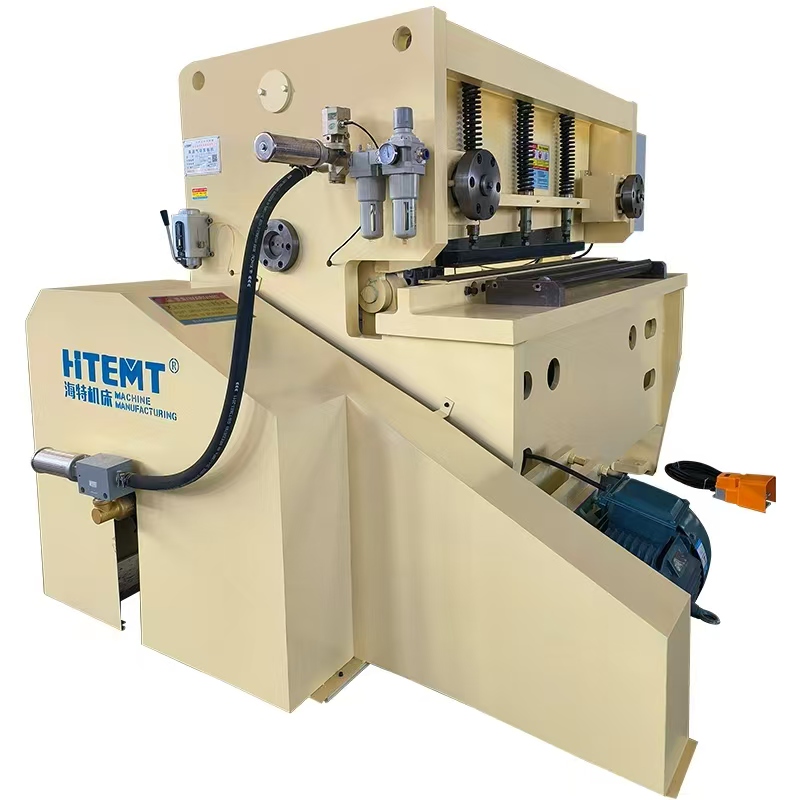

氣動剪板機采用由下往上V型刀剪切方式。主要用于剪切板厚為0.5-3mm寬度為不大于1600mm的鋼板，被剪切板料強度以450N/mm2為計算依據，如需剪切其它大于該強度的板料時應相應減薄被剪板料的最大厚度。本機機身、上下刀架采用鋼板焊接結構，整體回火消除變形應力，龍門結構式下傳動，工作平穩可靠，剛性好、噪音低。
The pneumatic shearing machine adopts a V-shaped knife cutting method from bottom to top. Mainly used for cutting steel plates with a thickness of 0.5-3mm and a width not exceeding 1600mm. The strength of the sheared plate is calculated based on 450N/mm2. If it is necessary to cut other plates with a strength greater than this, the maximum thickness of the sheared plate should be correspondingly reduced. The body and upper and lower knife frames of this machine are made of steel plate welded structure, with overall tempering to eliminate deformation stress. The gantry structure type lower transmission ensures smooth and reliable operation, good rigidity, and low noise.
氣動剪板機技術參數：
Technical parameters of pneumatic shearing machine:
|
規格 Specifications |
3×1600 |
|
|
|
剪切
厚度
Shear thickness
(mm) |
中碳鋼
Medium carbon steel
45kg/mm² |
3 |
|
|
|
不銹鋼
Stainless steel
60kg/mm² |
1.5 |
|
|
|
鋁板
Aluminum plate
30kg/mm² |
4 |
|
|
|
剪切長度Cut length mm |
1500 |
|
|
|
刀片長度Blade length mm |
1620 |
|
|
|
上刀剪切角度
Cutting angle of the upper blade |
1.5 |
|
|
行程次數（連續剪切）/分鐘
Number of trips (continuous cutting) per minute |
≥60 |
|
|
|
主電動機功率
Main motor power
（KW） |
7.5 |
|
|
氣動離合器型號
Pneumatic clutch model |
LZ380 |
|
|
中心高度（根據客戶要求）
Center height (according to customer requirements)
(mm) |
1150 |
|
|
