概述Overview： （此概述僅作為參考，具體制作要求按買方要求生產This overview is for reference only. Specific production requirements will be based on the buyer's requirements）

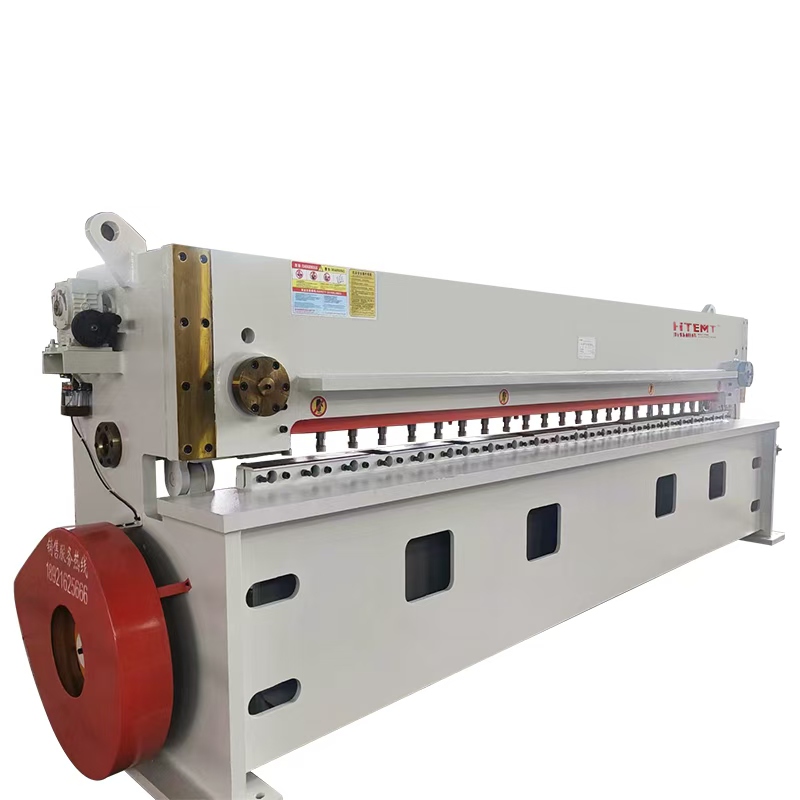

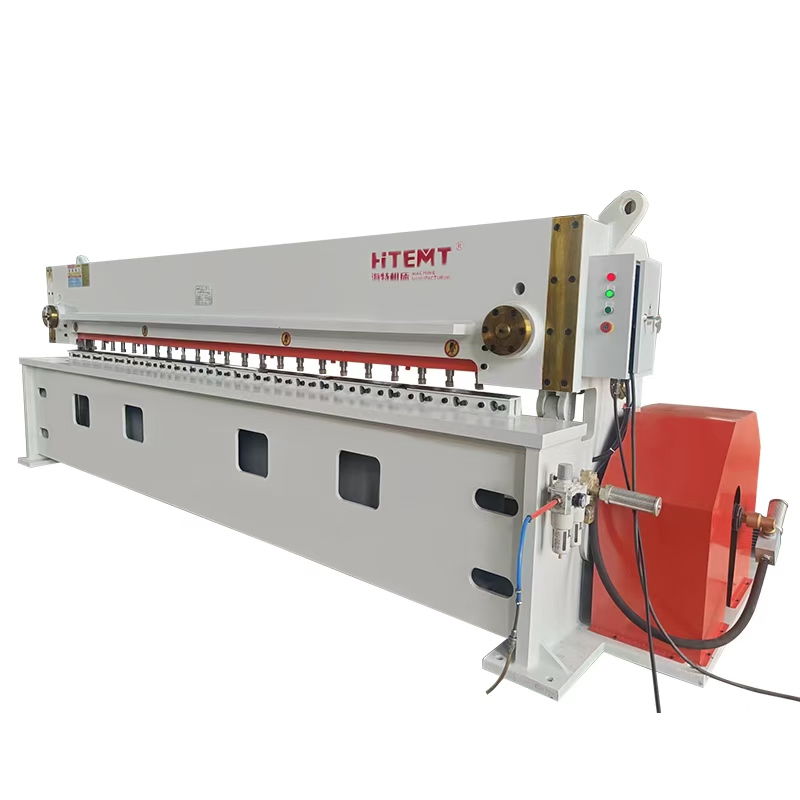

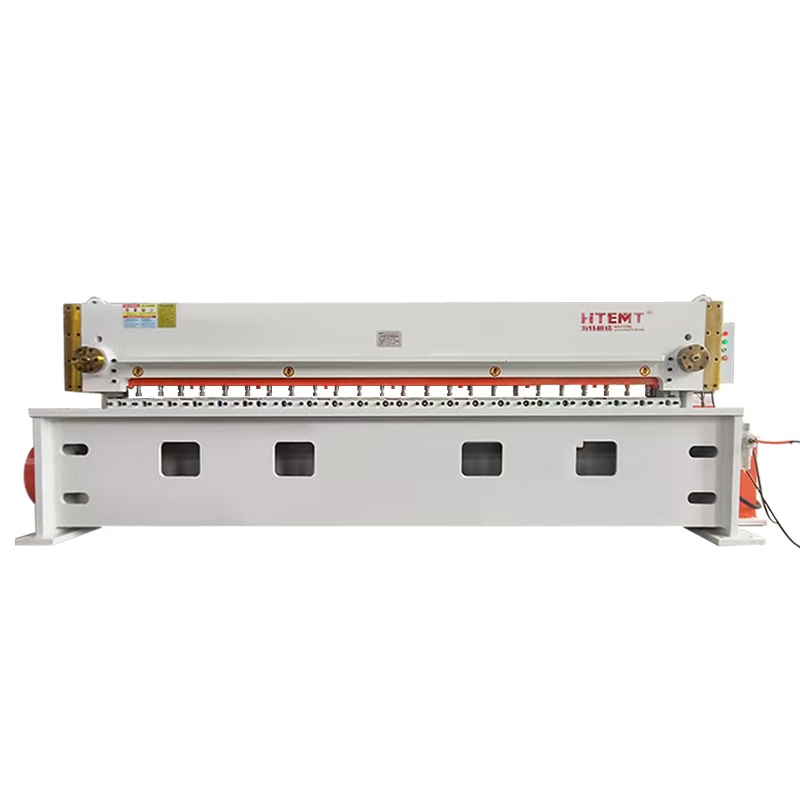

本機器主要用于剪切板厚為0.5—3，寬度為不大于4000mm的鋼板，被剪切板料強度以450N/mm2為計算依據，如需剪切其它大于該強度的板料時應相應減薄被剪板料的最大厚度。本機機身、上下刀架采用鋼板焊接結構，整體回火消除變形應力，龍門結構式上傳動，工作平穩可靠，剛性好、噪音低。
This machine is mainly used for cutting steel plates with a thickness of 0.5-3 and a width not exceeding 4000mm. The strength of the sheared plate is calculated based on 450N/mm2. If other plates with a strength greater than this need to be sheared, the maximum thickness of the sheared plate should be correspondingly reduced. The body and upper and lower knife frames of this machine are welded with steel plates, and the overall tempering eliminates deformation stress. The gantry structure is used for upper transmission, which works smoothly and reliably, with good rigidity and low noise.
機床主要技術參數：Main technical parameters of the machine tool:
|
規格Specifications |
3*4000 |
|
剪切厚度
Shear thickness
mm |
中碳鋼 Medium carbon steel 45kg/mm² |
3 |
|
不銹鋼 Stainless steel 60kg/mm |
1.5 |
|
鋁板 Aluminum plate 30kg/mm |
4 |
|
剪切長度 Cut length mm |
4000 |
|
刀片長度 Blade length mm |
4020 |
|
上刀剪切角度 Cutting angle of the upper blade |
20 |
|
行程次數（空載連續剪切）/分鐘
Number of trips (unloaded continuous cutting)/minute |
≥60 |
|
主電動功率 Main electric power（KW) |
15 |
|
氣動離合器型號 Pneumatic clutch model |
LZ500 |
|
中心高度（根據客戶要求）
Center height (according to customer requirements)
MM |
910 |
