技 術 文 件
一、機床型號名稱

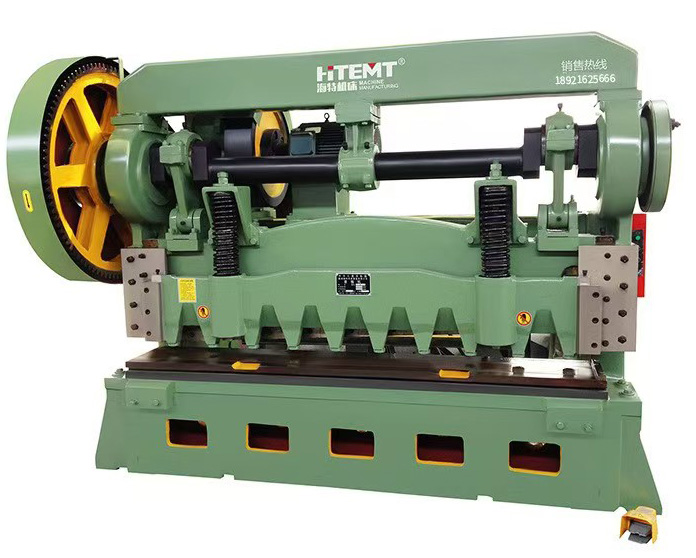

1、型號： Q11-13*2500機械傳動式剪板機
2、注冊商標： HITEMT
二、主要參數：
1、可剪最大板厚 13 毫米
2、可剪最大板寬 2500 毫米
3、后擋料距離 500 毫米
4、行程次數 22-30 次/鐘
5、立柱間距離 2600 毫米
6、被剪板料強度 450 N/平方毫米
7、剪切角 3 度
8、刀片長度 2540 毫米
9、工作臺離地面高度 680 毫米
10、喉口深度 230 毫米
11、電動機 型號：Y180L-6 功率：15KW 轉數：970轉/分
12、外型尺寸 長 3680毫米 寬 2160毫米 高 2450毫米
三、剪板機設計、制造驗收標準、按照國家下列標準：
JB5197-91 《剪板機技術條例》
JB T144404-93 《剪板機精度》
四、機器噪聲測量標準：
A 計權聲壓級LPA≤82Db(A)
A計權聲功率級LWA≤94 Db (A)
五、性能特點：
1、成熟型力量型機械傳動式剪板機。
2、上、下刀架，墻板均為鋼板件，采用框架結構焊接而成，強度大。
3、矩型刀片，四個刀口均可使用，保用壽命長。
4、傳動采用機械傳動，提高了制件精度。
5、剪切速度特別快，為各種類型剪板機之王。
六、設備工作環境：
1、電源要求：三相四線制、380V 50HZ
2、安裝場地：平整牢固
七、隨機附件、配套件清單
|
序號 |
名稱 |
數量 |
備注 |
|
1 |
腳踏開關 |
壹個 |
|
|
2 |
地腳羅絲 |
壹套 |
|
|
3 |
塞尺 |
壹把 |
|
|
4 |
黃油槍 |
壹把 |
|
|
5 |
彈簧拆卸工具 |
壹付 |
|
八、隨機技術文件清單
|
序號 |
名稱 |
數量 |
備注 |
|
1 |
機床使用說明書 |
壹份 |
|
|
2 |
機床基礎圖 |
壹份 |
|
|
3 |
機床安裝運輸?shù)跹b圖 |
壹份 |
|
|
4 |
合格證明書、裝箱清單 |
壹份 |
|
注：上述文件有部分文件裝訂在同一本中
九、安裝調試、技術服務及售后服務
我們公司在致力于開發新產品，提高產品質量的同時，還在世界及國外組建了較為完善的售后服務網絡。售后服務網點遍布全國各地。得以給我們的用戶提供更為方便、更為優質的服務：
1、 設備的地基由供方提供圖紙，需方提供具體的施工。
2、 產品在供方廠裝配完畢后，及時通知需方具體的發貨時間及安裝所需的準備工作。
3、 供方負責設備在需方使用現場的安裝調試工作，需方配合，并提供安裝所需起重設備、電源及必需條件。
4、 設備在需方安裝調試過程中，供方對需方相關技術人員進行免費培訓和技術咨詢服務。
5、 安裝調試完畢，按雙方所簽的技術協議和相關技術附件，雙方共同驗收。
6、 供方的產品，自售出之日起實行“三包”，質量三包期為驗收合格后壹年。在保修期內，非用戶原因造成的零部件損壞，負責更換（易損件不在保修范圍內）。三包期滿，實行終身保修，收取工本費。
7、 供方為需方提供上門服務。接到需方質量報告后，2小時作出答復，48小時到現場維修。
我公司本著友好，比質比價的合作原則，提供以上參數及配置，供用戶參考，如有特殊要求可以面商。歡迎貴公司領導來我公司考察、指導。
Technical documents
1、 Machine tool model name
1. Model: Q11-13 * 2500 mechanical transmission shearing machine
2. Registered trademark: HITEMT
2、 Main parameters:
1. The maximum thickness that can be cut is 13 millimeters
2. The maximum board width that can be cut is 2500 millimeters
3. Rear blocking distance of 500mm
4. Travel frequency: 22-30 times/hour
5. Distance between columns 2600 millimeters
6. The strength of the sheared sheet metal is 450 N/square millimeter
7. Shear angle 3 degrees
8. Blade length 2540mm
9. The height of the workbench above the ground is 680 millimeters
10. Throat depth 230 millimeters
11. Motor model: Y180L-6 Power: 15KW Speed: 970 RPM
12. Dimensions: Length 3680mm, Width 2160mm, Height 2450mm
3、 The design, manufacturing and acceptance standards of the shearing machine shall be in accordance with the following national standards:
JB5197-91 "Technical Regulations for Cutting Machines"
JB T144404-93 "Precision of shearing machine"
4、 Machine noise measurement standard:
A-weighted sound pressure level LPA ≤ 82Db (A)
A-weighted sound power level LWA ≤ 94 Db (A)
5、 Performance characteristics:
1. Mature force type mechanical transmission shearing machine.
2. The upper and lower knife frames, as well as the wall panels, are all made of steel plates and welded together using a frame structure, with high strength.
3. Rectangular blade, all four cutting edges can be used, ensuring a long service life.
4. The transmission adopts mechanical transmission, which improves the accuracy of the parts.
5. The cutting speed is particularly fast, making it the king of various types of shearing machines.
6、 Equipment working environment:
1. Power requirements: three-phase four wire system, 380V 50HZ
2. Installation site: flat and firm
7、 List of Random Accessories and Supporting Parts
Number, Name, Quantity, Remarks
One foot switch
2-foot Rose set
3 feeler gauges, one
4 butter guns
5 sets of spring disassembly tools
8、 List of Random Technical Documents
Number, Name, Quantity, Remarks
One copy of the machine tool manual
One copy of the machine tool foundation diagram
One copy of the installation, transportation, and lifting diagram for machine tool 3
4. One copy of certificate of conformity and packing list
Note: Some of the above documents are bound in the same volume
9、 Installation and debugging, technical services, and after-sales service
Our company is committed to developing new products and improving product quality, while also establishing a relatively complete after-sales service network around the world and abroad. After sales service outlets are located throughout the country. To provide our users with more convenient and high-quality services:
1. The foundation of the equipment shall be provided with drawings by the supplier, and the specific construction shall be provided by the demander.
2. After the product is assembled at the supplier's factory, promptly notify the purchaser of the specific delivery time and the preparation work required for installation.
3. The supplier is responsible for the installation and commissioning of the equipment at the purchaser's site, and the purchaser cooperates and provides the necessary lifting equipment, power supply, and necessary conditions for installation.
4. During the installation and debugging process of the equipment by the demand party, the supplier shall provide free training and technical consulting services to the relevant technical personnel of the demand party.
5. After installation and debugging are completed, both parties shall jointly inspect and accept according to the technical agreement and relevant technical attachments signed by both parties.
6. The supplier's products are subject to the "three guarantees" from the date of sale, and the quality warranty period is one year after passing the acceptance inspection. During the warranty period, if the parts are damaged due to reasons not caused by the user, they will be replaced (vulnerable parts are not covered by the warranty). After the expiration of the warranty period, a lifetime warranty will be implemented and a production fee will be charged.
7. The supplier provides on-site service to the demander. After receiving the quality report from the customer, a response will be given within 2 hours and on-site repairs will be carried out within 48 hours.
Our company, based on the principle of friendly cooperation and comparison of quality and price, provides the above parameters and configurations for users' reference. If there are special requirements, we can negotiate with you. Welcome your company leaders to visit and provide guidance to our company.
